activPilot

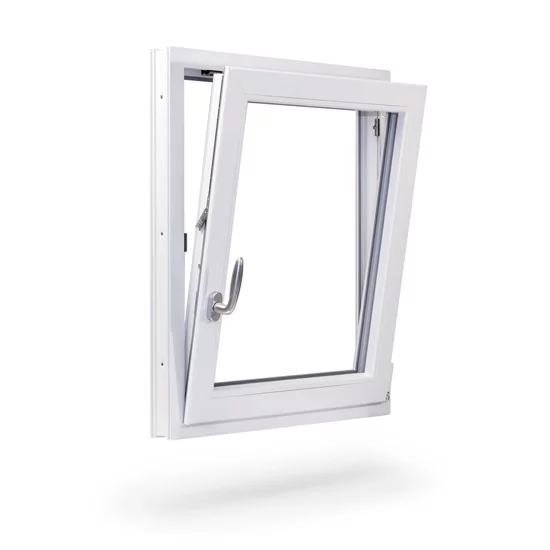

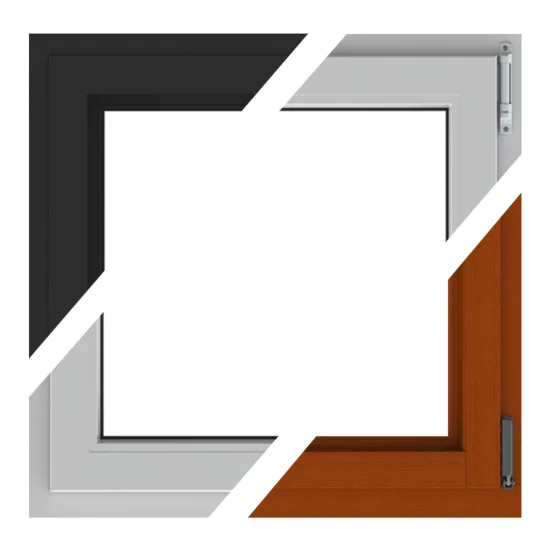

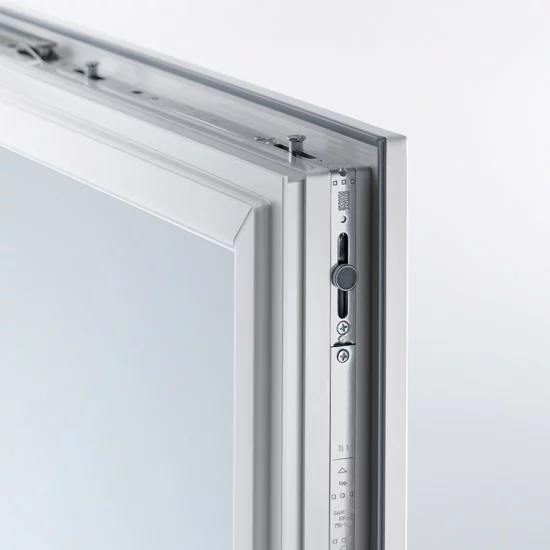

The activPilot Concept fitting system for tilt and turn windows combines functionality, sophisticated security technology and ease of use. It is versatile and well suited to all window materials. It also meets the highest requirements in terms of appearance, as the visible hinges can be customised as desired.

• Suitable for large and heavy windows and patio doors (sash weights: up to 130/150 kg)
• Meets requirements of test class H3 (20,000 movement cycles)
• Flexibility thanks to modular system
• Certified quality as per QM 328

For more information on our activPilot Concept, take a look at our comprehensive product catalogue.

Windows with fully concealed fittings look good and are easier to maintain. activPilot Select from Winkhaus can even carry large and heavy door and window sashes (up to 150 kg) – ideal for the demanding functional and aesthetic requirements of contemporary architecture.

• Suitable for door and window sashes up to 3 m² and 150 kg*
• Individually adaptable burglar resistance
• Additional functions can be retrofitted at any time
• Energy efficiency – sealing plane is not interrupted

Further information on our activPilot Select can be found in the corresponding product catalogue.

The designer fitting: activPilot Topstar makes flush-mounted windows with slim joints and slim frames a reality. Even very large and heavy windows are no problem for activPilot Topstar thanks to its load bearing capacity of up to 130 kg. In addition, Topstar is extremely energy-efficient thanks to the continuous sealing plane.

• High load capacity (up to 130 kg sash weight)
• For especially slim frames with small free size of the frame
• Well-suited to windows flush-mounted on the inside
• Extremely energy-efficient – continuous sealing plane
• Enables individually configurable security levels for windows up to resistance class RC2

Further information on our activPilot Topstar fittings an be found in our detailed product catalogue.

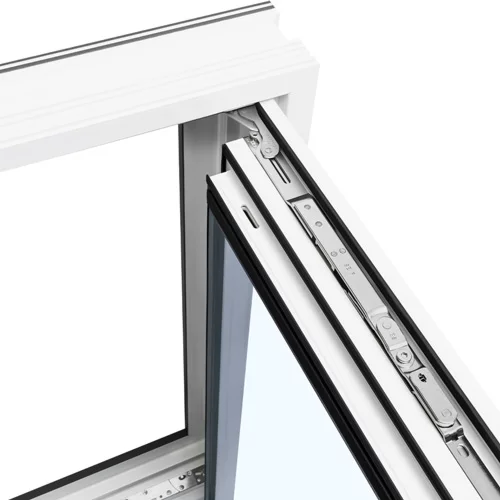

Revolutionary ideas set new standards. This also includes the secured parallel action function developed by Winkhaus. The additional option of shifting the sash by approx. 6 mm into parallel position, which provides windows which meet building owners’ latest requirements for security, sustainability and energy efficiency.

• Parallel action enables ventilation with burglary resistance up to RC2
• Extremely energy-efficient thanks to uniform supply of fresh air
• Suitable for timber and PVCu windows
• special feature – dual function of the crosswire handle position

Further information on activPilot Comfort can be found in the corresponding brochure or in our detailed product catalogue.

Discreet and effective: activPilot Control enables different ways of electronically monitoring windows. The various closing contacts are specifically matched to their respective application area – climate control, exhaust air control or alarm monitoring. Since they are built into the window fitting, they cannot be detected from the outside when the window is closed.

• Enables alarm monitoring, climate control and exhaust air control
• VdS-certified alarm monitoring (VdS class B or VdS class C)
• Exhaust air control approved by the DIBt construction institute
• Easy to integrate into Winkhaus activPilot fittings
• Not visible from the outside

Further information on the activPilot Control add-on range can be found in the corresponding product catalogue.

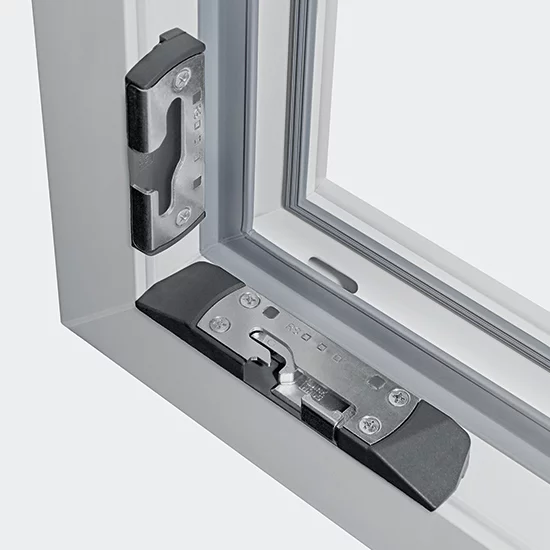

Specially designed for large windows made of PVC-U, wood and aluminium: The turn-tilt fitting Winkhaus activPilot Giant is a sturdy system that combines maximum load-bearing capacity with a striking sleek appearance. A nice detail: the visible fitting parts are powder coated and come in the colours white and F9 (grey-metallic).

• Suitable for large and heavy windows (with a sash weight of up to 180 or 200 kg)
• Sleek appearance
• Visible parts available in powder-coated design

Further information on the activPilot Giant can be found in the comprehensive product catalogue.

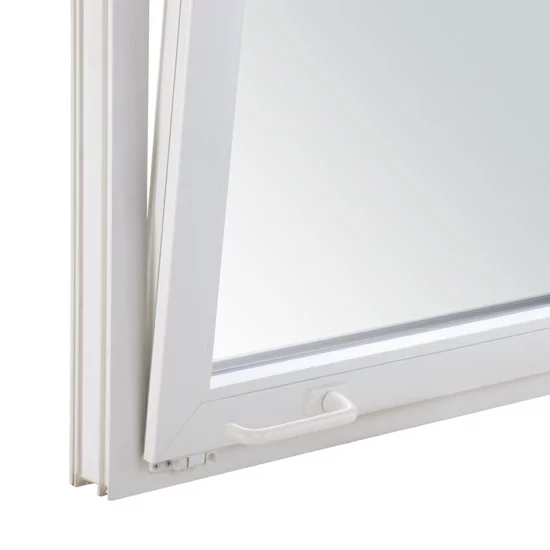

The turn-tilt fitting activPilot Ergo with assisted operation offers the highest operating comfort for easy opening of difficult to access windows. Simply turning the handle, which can be horizontally positioned at the bottom, prompts the integrated assisted control to release and automatically tilt open the window sash.

• Automatic tilt opening by turning the handle 180°
• Conventional turn opening with handle in 90° position
• For hard-to-access windows
• Suitable for the physically impaired

Further information on activPilot Ergo can be found in the corresponding product catalogue.

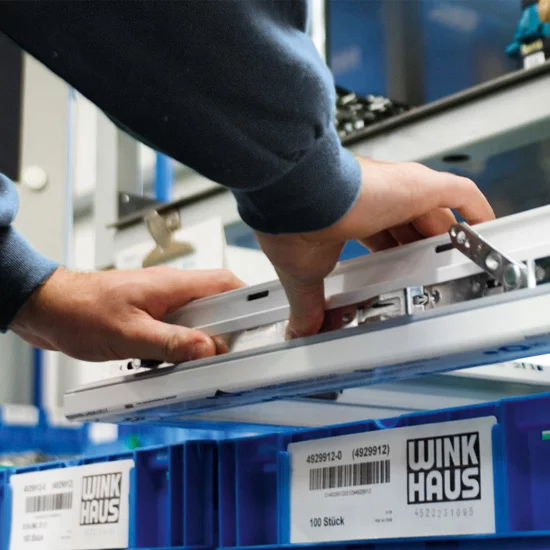

activPilot Sprint is used for automated window production. It can be combined with all add-on components in the activPilot range.

• Separate fitting installation and fitting screw connection
• Optimally adaptable to production cycle times
• Only 4 – 6 joining operations per sash assembly

Further information on activPilot Ergo can be found in the corresponding product catalogue.
